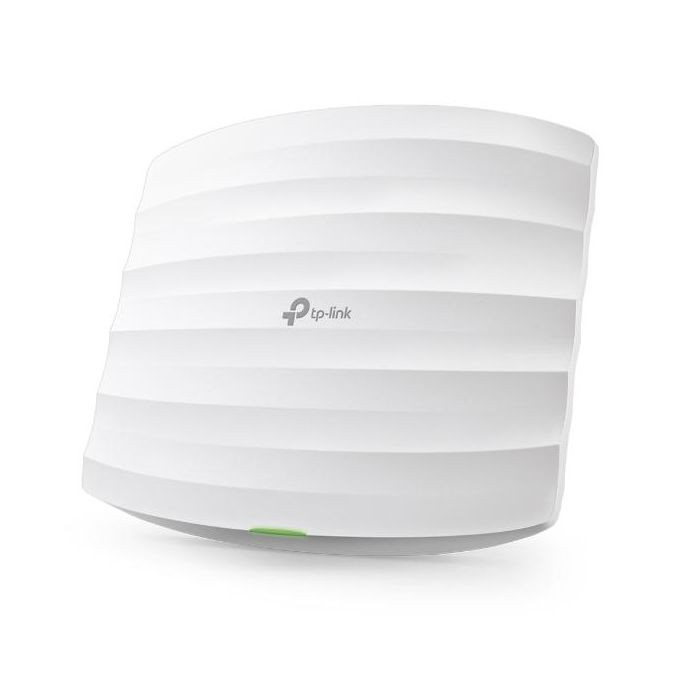

TP-Link Omada EAP110 Access Point Outdoor Ceiling mount

Product detailsIntegrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.SpecificationsKey FeaturesInterface1× Fast Ethernet (RJ-45) Port (Support Passive PoE)ButtonResetPower Supply24V Passive PoE ( 4,5pins; -7,8pins. PoE Adapter Included)Power Consumption2.8 WDimensions ( W x D x H )7.5×6.7×1.2 in (189.5×170.5×29.7mm)Antenna TypeInternal 2× 4 dBi OmniMountingCeiling /Wall Mounting (Kits included)WIRELESS FEATURESCoverage60㎡(650ft²)§Concurrent Clients100 **Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11bFrequency2.4–2.4835 GHzSignal Rate• 11n: Up to 300 Mbps (dynamic)• 11g: Up to 54 Mbps (dynamic)• 11b: Up to 11 Mbps (dynamic)Reception Sensitivity• 300M: -71 dBm@10% PER• 150M: -75 dBm@10% PER• 54M: -78 dBm@10% PER• 11M: -93 dBm@8% PER• 6M: -92 dBm@10% PER• 1M: -96 dBm@8% PERWireless Functions• Multiple SSIDs （Up to 8 SSIDs）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• QoS(WMM)• Seamless Roaming(802.11r)• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/ClientWireless Security• Captive Portal Authentication• Access Control• Wireless MAC Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSKTransmission Power• CE:≤19 dBm (EIRP)• FCC:≤21 dBmMANAGEMENTOmada AppYesCentralized Management• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software ControllerCloud AccessYes (Through OC300, OC200, or Omada Software Controller)Email AlertsYesLED ON/OFF ControlYesManagement MAC Access ControlYesSNMPv1,v2cSystem Logging Local/Remote SyslogLocal/Remote SyslogSSHYesWeb-based ManagementHTTP/HTTPSL3 ManagementYesMulti-site ManagementYesManagement VLANYesSpecificationsWeight (kg): 1Color: White
