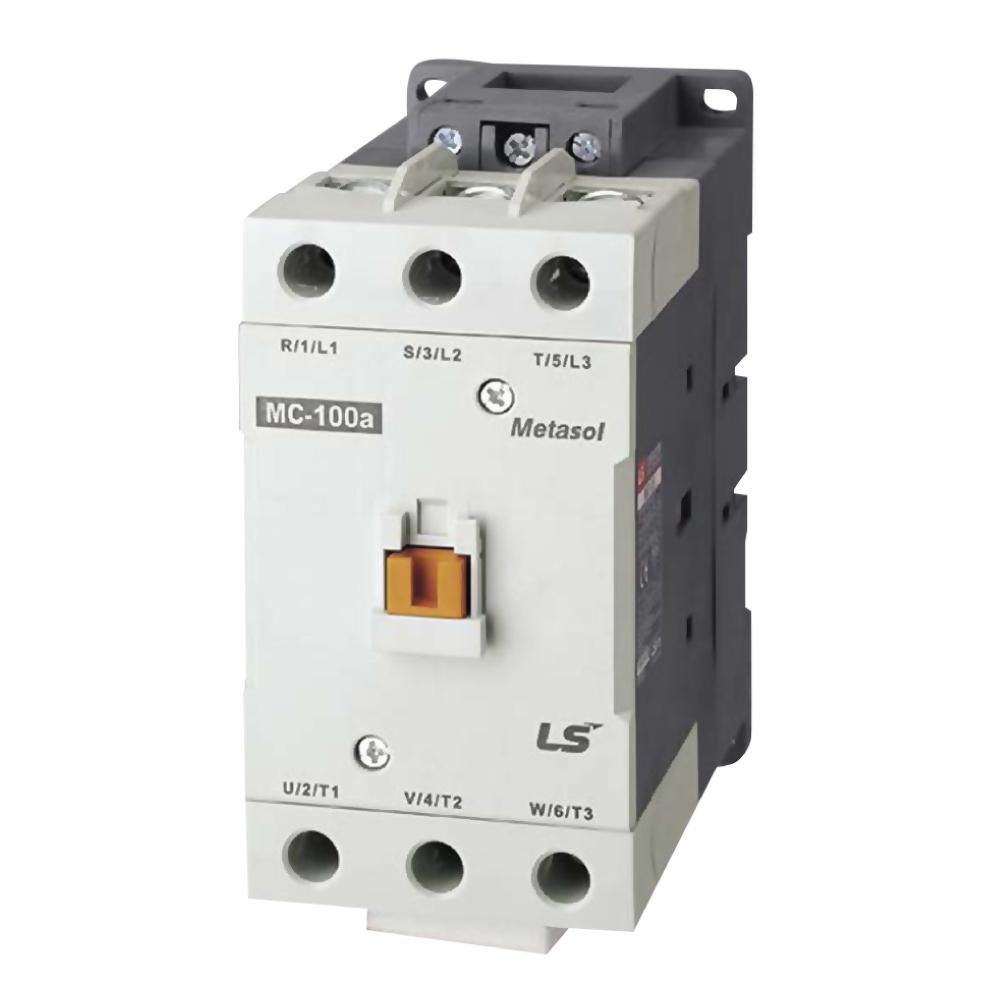

LS – 3 Pole 240V N/O (AC Coils) 2a 2b 55kW 105A (AC3) – 160A (AC1) Magnetic Contactor – 3-pole(N/O) main contact – Finger proof design – DIN rail or screw mountable – Both screw and Box terminal (lug) type are available – AC or DC control in different physical size – Front/side mountable accessories available – Direct mountable overload relay available Rating – 2NO2NC Auxiliary contact built-in is possible as standard – Degree of protection: IP20 Contactor type MC-100a kW A AC duty AC3 200/240V 30 105 380/440V 55 105 500/550V 55 85 690V 45 65 1000V 37 28 AC4 200/240V 19 80 380/440V 37 75 AC1 – 160 Directly mountable Overload relay MT-95 Conductor size (solid, stranded) (the max. number of conducts: 2) AWG 8~00 mm² 10~70 Conductor type 65/75 Cu-wire only Picture shown is for illustration purposes only; this product is as per description. SKU: MC-100A240 Categories: Contactor, Motor Control
