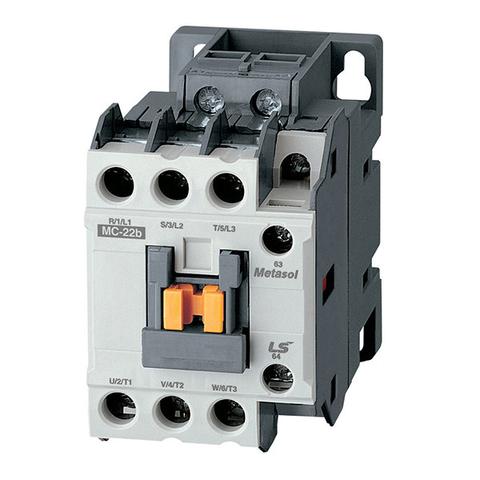

LS – 3 Pole 240V N/O (AC Coils) 1a 1b 5.5kW 12A (AC3) – 25A (AC1) – 3-pole(N/O) main contact – Finger proof design – DIN rail or screw mountable – AC or DC control in different physical size – Front/side mountable accessories available – Direct mountable overload relay available Rating – 1NO1NC Auxiliary contact built-in as standard. – UA-1 is available on only left side – Degree of protection: IP20 Contactor type MC-12b kW A AC duty AC3 200/240V 3.5 13 380/440V 5.5 12 500/550V 7.5 12 690V 7.5 9 AC4 200/240V 2.2 11 380/440V 4 9 AC1 – 27 Directly mountable Overload relay MT-32 Conductor size (solid, stranded) (the max. number of conducts: 2) AWG 16~8 mm² 1.5~10 Conductor type 65/75 Cu-wire only SKU: MC-12B240V Categories: Contactor, Motor Control
