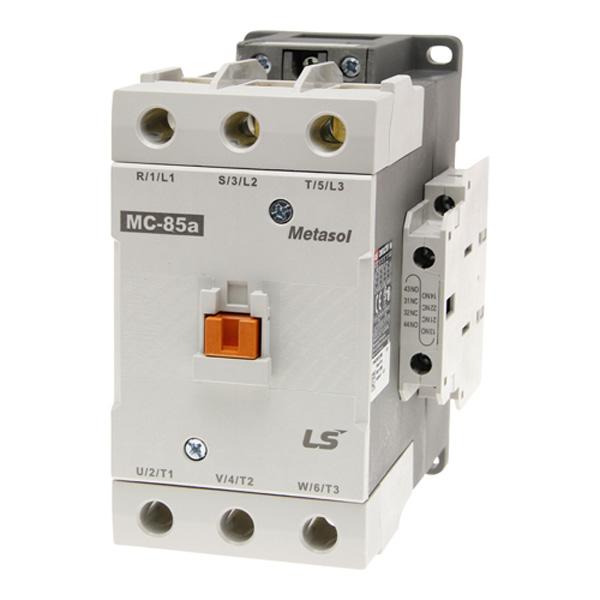

LS – 3 Pole 240V N/O (AC Coils) 2a 2b 45kW 85A (AC3) – 135A (AC1) – 3-pole(N/O) main contact – Finger proof design – DIN rail or screw mountable – Both screw and Box terminal (lug) type are available – AC or DC control in different physical size – Front/side mountable accessories available – Direct mountable overload relay available Rating – 2NO2NC Auxiliary contact built-in is possible as standard – Degree of protection: IP20 Contactor type MC-85a kW A AC duty AC3 200/240V 25 85 380/440V 45 85 500/550V 45 75 690V 45 45 1000V 37 28 AC4 200/240V 15 65 380/440V 30 62 AC1 – 135 Directly mountable Overload relay MT-95 Conductor size (solid, stranded) (the max. number of conducts: 2) AWG 8~0 mm² 10~50 Conductor type 65/75 Cu-wire only SKU: MC-85A240V Categories: Contactor, Motor Control
