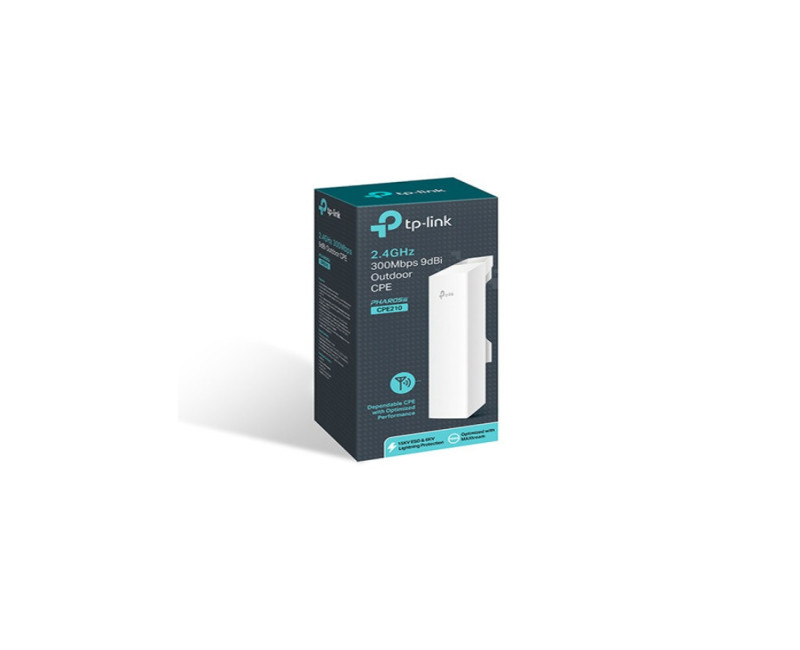

Product detailsBuilt-in 9dBi 2x2 dual-polarized directional MIMO antennaAdjustable transmission power from 0 to 25dBm/500mwSystem-level optimizations for more than 5km long-range wireless transmissionTP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applicationsCentralized Management System – Pharos ControlAP / Client / AP Router / AP Client Router (WISP) operation modesPassive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotelySpecificationsKey FeaturesProcessorQualcomm Atheros 560MHz CPU, MIPS 74KcMemory64MB DDR2 RAM, 8MB FlashInterface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)1 Grounding Terminal1 Reset ButtonPower SupplyPassive Power over Ethernet via LAN0 ( 4,5pins; -7,8pins)Voltage range: 16-27VDCPower Consumption5 Watts MaxNote: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.Dimensions ( W x D x H )224 x 79 x 60 mmAntenna TypeBuilt-in 9dBi 2x2 Dual-polarized Directional AntennaBeam Width: 65° (H-Plane) / 40° (E-Plane)Note: For more details, please refer to datasheetProtection15KV ESD Protection6KV Lightning ProtectionEnclosureOutdoor ASA stabilized plastic materialIPX5 waterproof CertificationWIRELESS FEATURESWireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)Wireless SpeedsUp to 300Mbps (40MHz,Dynamic)Up to 144.4Mbps (20MHz,Dynamic)Up to 72.2Mbps (10MHz,Dynamic)Up to 36.1Mbps (5MHz,Dynamic)Frequency2.4~2.483GHzNote: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.Transmission Power25dBm/316mw (Adjustable power by 1dBm)Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.SOFTWARE FEATURESWireless ConfigurationsPharos MAXtream TDMA Technology802.11b/g/n ModesSelectable Channel Width: 5/10/20/40MHzAutomatic Channel SelectionTransmission Power ControlDynamic Frequency Selection (DFS)WDS Enable/DisableSecurity: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP EncryptionSSID Broadcast Enable/DisableMulti-SSID with VLAN Tagging (AP mode only)Distance/ACK Timeout SettingWireless MAC Address FilterWireless Advanced:> Beacon Interval/RTS Threshold/Fragmentation>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi MultimediaManagementDiscovery and Remote Management via Pharos Control applicationHTTP/HTTPS Web-based managementSystem LogSNMP Agent(v2c)Ping Watch DogDynamic DDNSSSH ServerSystem ToolsWireless Signal Quality Indicators:Signal Strength/Noise/Transmit CCQ/CPU/MemoryMonitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCPSpectrum AnalyzerSpeed TestPingTracerouteSystem-level OptimizationsOptimized IGMP Snooping/Proxy for multicast applicationsHardware watch dogSpecificationsWeight (kg): 1Color: white
